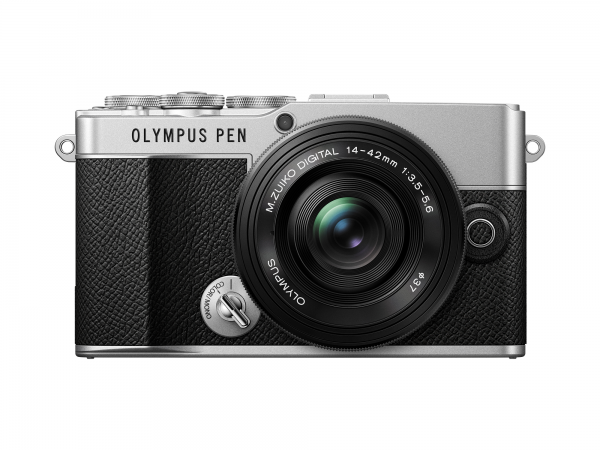

Olympus PEN E-P7 (silber/schwarz) - mit dem M.ZUIKO DIGITAL ED 14‑42mm 1:3.5‑5.6 EZ) - mit freundlicher Genehmigung von Olympus Deutschland

Beschreibung

Am 09.06.2021 stellte Olympus eine neue kompakte Systemkamera vor: Die PEN E-P7.

Lt. den bekannten Quellen ist sie (technisch) aus der E-M10 IV abgeleitet worden, folgende (grundlegende) Unterschiede werden genannt:

  • Fehlen des elektronischen Suchers
  • kompakteres Gehäuse
  • eingebautes Blitzgerät vgl. der PEN E-PL10 (herausklappbar)
  • Display vgl. der PEN E-PL10 (nach unten klappbar)
  • Creativ-Dial auf der Vorderseite
  • überwiegende Verwendung von Metall für das Gehäuse

Eine Quelle bezeichnet die Kamera: "Es wurde die Technik einer E-M10 IV (aber ohne Sucher) mit einem abgespecktem Kreativrad (aus der PEN F) und einem Klappdisplay (z.B. aus der PEN E-PL10) in einem neuem Designgehäuse verpackt".

Weiterhin berichten die bekannten Quellen, dass die PEN E-P7 überwiegend für den asiatischen Markt designt wurde - hier werden (im Gegensatz zum europäischen Markt) Kameras ohne elektronischen Sucher bevorzugt. Die Kamera soll nur in geringen Stückzahlen im europäischen Raum vermarktet werden, der überwiegende Teil der Produktion ist für den asiatischen Markt (Zielgruppe) vorgesehen.

Zitate

Aus der Pressemitteilung von Olympus:

"Die neue Micro Four Thirds Systemkamera Olympus PEN E-P7 lässt die Herzen kreativer Designliebhaber höher schlagen. Ihr einzigartiges Äußeres erinnert an die historische, von Maitani kreierte, Olympus PEN Serie. Die erste Kamera eroberte 1959 die Welt. Was sich seit damals nicht geändert hat: Die PEN ist klein, leicht und einfach zu bedienen. In der PEN von heute stecken innovative Imaging-Technologien wie die Profilkontrolle, mit der sich die unvergesslichen Momente ganz individuell festhalten lassen. Dabei sorgen der 20-Megapixel-Live-MOS-Sensor und der integrierte 5-Achsen-Bildstabilisator in Verbindung mit den leistungsstarken M.Zuiko Objektiven für eine Top-Qualität."

Technische Daten

<tr class="row-150 even">
TYPE
Lens mount Micro Four Thirds
IMAGE SENSOR
Type 4/3 Live MOS sensor
Effective pixels 20.3 Megapixels
ENGINE
Type TruePic VIII
FILTER
Dust reduction filter Supersonic Wave Filter
LIVE VIEW
Displayed information Aperture, Shutter speed, Auto bracket, AE lock, Focus mode, Shooting mode, Battery check, IS activating mode, Face / Eye detection mode, Record mode, ISO, Sequential shooting mode , White Balance, Metering mode, Exposure compensation value, AF frame display, AF confirmation mark, Shooting information, Spot metering area, Super FP, Flash status, Touch Panel Condition, Focal length, Flash mode, Histogram, Level Gauge, Highlight & Shadow, Focus peaking, Number of storable pictures, Custom, Face detection, Flash intensity, Wi-Fi
Field of view Approx. 100%
Magnification levels 5 / 7 / 10 / 14 x
IMAGE STABILISER
Type Sensor shift
Modes Five-dimensional, vertical or horizontal activation, automatic
Effective Compensation Range Up to 4.5 EV steps* CIPA
Live View stabilisation Available
FOCUSING SYSTEM
Method Contrast Detection AF system
Focus areas 121 points / All target, Group target (9-areas), Single target
AF lock Available, Locked by first position of shutter release button in single AF mode, AE/AF lock button (customised)
Modes Manual focus, Single AF, Continuous AF, Single AF + MF, AF Tracking, Super Spot AF, Face Detection AF
AF illuminator Equipped
Manual focus Available, With enlarged focusing area or focus peaking
AF targeting pad No
Face Detection extension Eye Detect AF: Off, Near side priority
Predictive AF Available
AF tracking Available, Available in continuous AF mode
EXPOSURE SYSTEM
Modes Programme automatic, Aperture priority, Shutter priority, Manual, Bulb, Time, i-Auto, Advanced Photo Modes, Scene Modes, Art Filter, Movie, Live Time, Live Composite
Exposure compensation ± 5 EV (1/3 EV step)
AE lock Available
ADVANCE PHOTO MODES
Modes Live Composite, Live Bulb, Multiple Exposure, HDR Backlight*, Silent, Panorama, Keystone Compensation, AE bracketing, AF bracketing
SCENE MODES
Number of scene modes 21
Modes Portrait, e-Portrait, Landscape with Portrait, Night Scene with portrait, Children, Sports, Panning, Night Scene, Hand-held Starlight, Fireworks, Light trails, Landscape, Sunset, Beach and Snow, Candle, Silent mode, Backlight HDR, Macro, Nature Macro, Documents, Multi Focus
MULTI-EXPOSURE
Max. number of frames 21
Frame assistance Live View
Auto gain control Available
LIGHT METERING
Method TTL open aperture light metering
Zones 324 zones Multi-pattern Sensing System
Detection range -2 - 20 EV (f2.8, ISO 100)
Modes ESP light metering, Spot metering, Centre weighted metering, Highlight, Shadow
ART FILTER
Modes Pop Art, Soft Focus, Pale & Light Colour, Light Tone, Grainy Film, Pin Hole, Diorama, Cross Process, Gentle Sepia, Dramatic Tone, Key Line, Water colour, Vintage, Partial Colour*, Bleach Bypass, Instant Film
Variation/Effekt Available
SENSITIVITY
Auto ISO LOW - 6400
Manual ISO LOW - 25600 (adjustable in 1/3 EV step)
SHUTTER
Shutter type Computerised focal-plane shutter
Self timer 2 s / 12 s / Custom
Modes Single frame, Sequential shooting, Self timer
SHUTTER SPEEDS
Standard operation 1/4000 - 60 s (in 1/3 EV steps )Bulb mode up to 30 minutes (selectable longest time in the menu, default: 8 minutes)
Silent mode Electronic shutter 1/16000 - 60 s
Anti-shock mode Electronic first curtain shutter 1/320 - 60 s
WHITE BALANCE
Manual White balance (One-Touch) Available
One-touche white balance 4 custom settings can be registered
Custom WB 1 setting can be registered at Kelvin temperature (2000K - 14000K)
Preset values Sunlight, Shade, Overcast, Tungsten, Flourescent 1, Flash
Auto Flash adjustment Off / Auto WB / Flash
Keep warm colour On / Off
SEQUENCE SHOOTING
Speed (H) Approx. 8.7 fps
Speed (L) 5 fps (IS on)
Max. number of frames Up to card capacity (RAW)
Up to card capacity (JPG / Large Normal mode)
Conditions Memory card: KIOXIA SDXU-D032G
Note: Depending on shooting conditions, the sequential shooting speed may reduce speed during shooting.
Speed (H) Approx. 15 fps
Speed (L) Approx. 6.3 fps
Framrate Max. number of frames: RAW 42 / JPG (LF): 49
Max. number of frames: RAW 945 / JPG (LF): Up to card capacity
IMAGE PROCESSING
Art Filter bracketing Available
Picture mode Colour Profile Control, Monochrome Profile Control, Art Filter
FLASH
Modes AUTO, Manual, Manual (Full, 1/4, 1/16, 1/64), Red-eye reduction, Slow synchronisation with red-eye reduction, Slow synchronisation, Slow synchronisation 2nd curtain, Fill-in, Off, TTL-Auto
Type Built-in
Flash compensation +/- 3 EV / 1/3 EV steps
Guide number 7.6 (ISO 200)
X-sync speed 1/250 s / 1/4000 s (Super FP Mode)
EXTERNAL FLASH CONTROL
X-sync speed 1/250 s / 1/4000 s (Super FP Mode)
Type TTL AUTO, AUTO, MANUAL, FP TTL AUTO, FP MANUAL
Modes Auto, Red-eye reduction, Slow synchronisation, 2nd curtain and slow synchronisation, Fill-in for exclusive flash, Manual
Compatible external flash FL-14, FL-20, FL-36R, FL-50R, FL-300R, FL-600R, FL-700WR, FL-900R, STF-8
WIRELESS FLASH CONTROL
Compatible external flash FL-36R, FL-50R, FL-300R, FL-600R, FL-700WR, FL-900R
Control method Triggered and controlled (Olympus Wireless RC Flash system)
Commander flash: FL-900R, FL-700WR, FL-600R, STF-8
(no control with internal flash)
Available when used together with flashes from the Olympus wireless RC flash system.
RADIO CONTROL
Radio wireless control Available when attaching optional flash commander
Compatible commander FC-WR, FL-700WR
Compatible receiver FL-700WR, FR-WR + wireless RC system flash
Modes Auto, FP Manual, FP TTL, FP TTL Auto, Manual
MONITOR
Monitor type Tiltable LCD - Touch Panel
Monitor size 7.6 cm / 3.0 (3:2)
Resolution 1,037 K dots
Brightness adjustment +/- 7 levels
Colour balance +/- 7 levels Vivid (default) / Natural
Touch Control functions Shutter release, AF area enlargement, AF area selection, Art Filter, Enlargement, Enlargement playback, Frame forward/backward, Live Guide, Scene Modes, Shooting mode, Super Control Panel, Wi-Fi connection
Tilt angle 80° (up) 180° (down)
LEVEL GAUGE
Detection 2-axis
Display Rear display and viewfinder
RECORDING FORMATS
RAW 12 bit
RAW & JPEG Applied parallel recording
JPEG Applied
Aspect ratio 4:3 / 3:2 / 16:9 / 6:6 / 3:4
STILL IMAGE RECORDING
EXIF 2.31
DCF Applied
MOVIE RECORDING SYSTEM
Recording format MOV(MPEG-4AVC/H.264)
Image Stabilisation Mode Applied Hybrid sensor shift + digital (5-axis)
3840 x 2160 (4K) / 30p, 25p, 24p / IPB (approx. 102
Mbps)
HD Movie quality Full HD 1920 x 1080 (16:9) / 30p, 25p, 24p (MOV) 29min.
Full HD 1920 x 1080 (16:9) / 60p, 50p / IPB (F,N) / (MOV)
(MOV)
HD 1280 x 720 (16:9) / 60p, 50p, 30p, 25p, 24p (MOV)
Maximum Recording Time 29 min (MOV)
Exposure Modes Art Filter, Programme automatic
MOVIE SPECIALITIES
High-Speed Recording 720P / 120fps
Time lapse 4k, 1080p, 720p Available
Art Filter Cross Process, Diorama, Dramatic Tone, Gentle Sepia, Grainy Film, Key Line, Light Tone, Pale & Light Colour, Pin Hole, Soft Focus, Pop Art, Bleach Bypass
SOUND RECORDING SYSTEM
Internal microphone Stereo
Recording format Stereo PCM/16bit, 48kHz, Wave Format Base
Image footage 30 s
Speaker Equipped
Microphone functions Wind Noise Reduction, Recording Volume
VIEW IMAGES
Modes Index, Calendar, Zoom, Slide show, Movie, Single
Light box Available
Histogram in playback mode Available
Shooting information Off / ON
Highlight/Shadow point warning Available
ERASE/PROTECT/COPY FUNCTION
Erase modes Single, All, Selected
Image protect mode Single frame, Selected frames, All Frames, Release protect (Single/All selected)
IMAGE EDITING
Editing functions RAW data edit, Red-eye reduction, Sepia, Black & White, Shadow Adjustment, Trimming, Aspect ratio
MENU
Menu languages in camera English, French, German, Spanish, Italian, Russian, Czech, Dutch, Danish, Polish, Portuguese, Swedish, Norwegian, Finnish, Croatian, Slovenian, Hungarian, Greek, Slovak, Turkish, Latvian, Estonian, Lithuanian, Ukrainian, Serbian
CUSTOMISATION OPTIONS
Fn Button Equipped
Programmable button Equipped
INTERFACE
Hot shoe Equipped
Media SD Memory Card (SDHC, SDXC, UHS-I, UHS-II compatible)
Class 10 or higher SD card is recommended for movie
shooting
UHS-I U3 card is recommended for 4K
HDMI™ Applied Micro connector (Type D)
USB 2.0 High Speed Applied
Wireless connectivity Wi-Fi, Bluetooth®
Communication method Bluetooth® Low Energy Ver.4.2
WI-FI FUNCTIONS
Easy Connection QR code setting
Wireless Shooting Live View, Power off, Rec View, Self timer, Touch AF & Shutter, P/A/S/M exposure modes, Bulb mode, Live Composite, Zoom, Aperture priority, Manual
Image Share Automatic transfer is possible via Share Order JPEG, MOV
GPS info Available through Smartphone GPS data
OTHER FEATURES
Face Detection Technology Applied
Menu guide Available
POWER SUPPLY
Battery BLS-50 Lithium-Ion Battery (included)
Sleep mode 1, 3, 5min. and off selectable.
Live View shooting Approx. 360 images (50% with Live View) images (100% with Live View) (using BLS-50 and KIOXIA SD with IS ON, based on CIPA testing standards)
Movie recording 80 min (standard JEITA conditions)
140 min (When repeatedly recording at the maximum
time of 29 minutes, using M.Zuiko Digital ED 14-42mm
F3.5-5.6 EZ, 4K video shooting)
Internal Charging Available (Camera must be switched off)
ENVIROMENT
Temperature 0 - 40°C Operating temperature / -20 - 60°C storage temperature
Humidity 30 - 90% operation humidity / 10 - 90% storage humidity
DIMENSIONS/WEIGHT
Width 118.3 mm
Heigth 68.5 mm
Length 38.1 mm
Weight 337 g (including battery and memory card) (without tripod adapter)

Tests und Bewertungen

Kamerabilder

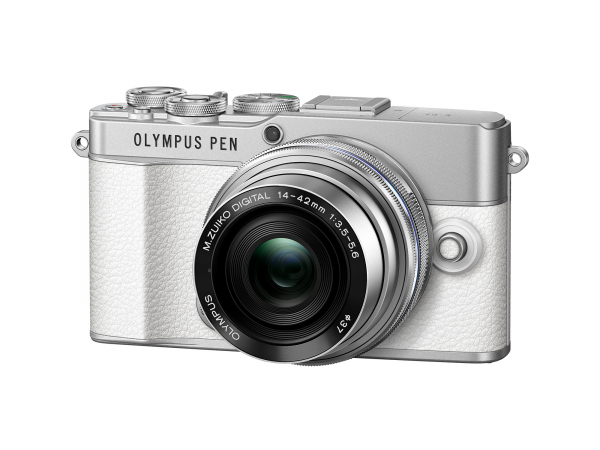

Olympus PEN E-P7 (silber/silber) - mit dem M.ZUIKO DIGITAL ED 14‑42mm 1:3.5‑5.6 EZ - mit freundlicher Genehmigung von Olympus Deutschland
